Setup Phonegap 3.4 on Windows 8 64-bit to create Android applications

by: Shailesh Patel in: Programming tags: Android, IOS, Phonegap,

This tutorial explains how to setup Phonegap 3.4 on a Windows 8 64-bit machine and use it for Android application development.


Windows 8 64-bit
Java SDK 7
Android SDK

Phonegap Installation on Windows

1. To start with PhoneGap installation, first download Node.js installer for Windows (node-v0.10.26-x64.msi) from the link given on Install PhoneGap page.

Setupphonegapwindows 01 01

2. Run Node.js Windows installer using “Run as administrator” option.

3. After the installation is complete open Command Prompt (Admin) and run command: npm install -g phonegap

Setupphonegapwindows 03 01

If the install process is successful, you will see following messages:

Setupphonegapwindows 03 02

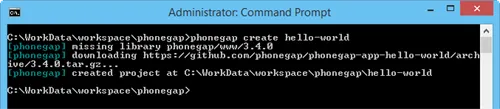

4. Create a “hello-world” app using this command: phonegap create hello-world

Setupphonegapwindows 04 01

5. Install JDK 7 for Windows 64-bit (jdk-7u51-windows-x64.exe).

6. Extract the file and move the extracted folder to “C:\Program Files” folder.

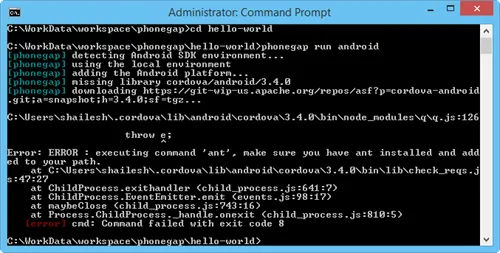

7. Try to run the command “phonegap run android” and it will fail will following message:

Error: ERROR : executing command 'ant', make sure you have ant installed and added to your path.

Setupphonegapwindows 07 01

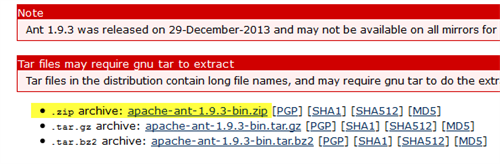

8. Download Apache Ant ( and extract it to “C:\Program Files” folder.

Setupphonegapwindows 08 01

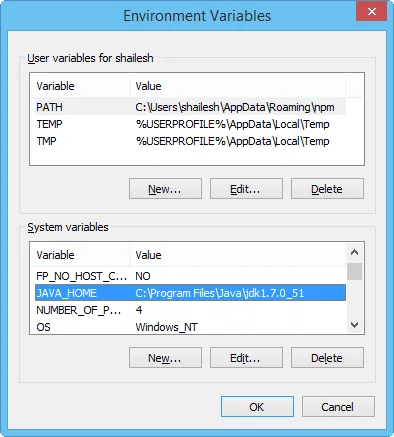

9. Next setup the paths in System Variables for Java and Apache Ant. Open Control Panel -> System -> click on Advanced system settings link -> click on Environment Variables button.

Under System Variables section, click on New button. Add a new system variable entry as given below:

JAVA_HOME - C:\Program Files\Java\jdk1.7.0_51

Note: DO NOT add any semi-colon (;) at the end of above path for JDK.

Setupphonegapwindows 09 01

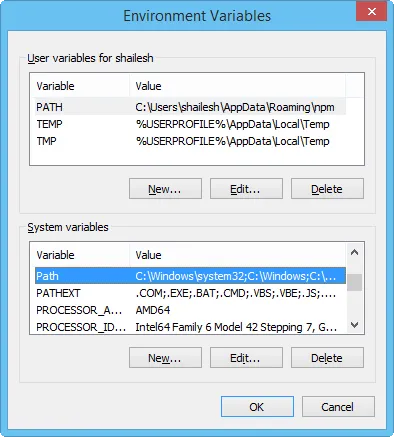

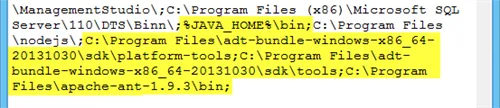

Now click on Edit for “PATH” variable under System variables section. Copy the platform-tools, sdk/tools and Apache Ant path as given below:

PATH - …\ManagementStudio\;C:\Program Files (x86)\Microsoft SQL Server\110\DTS\Binn\;%JAVA_HOME%\bin;C:\Program Files\nodejs\;C:\Program Files\adt-bundle-windows-x86_64-20131030\sdk\platform-tools;C:\Program Files\adt-bundle-windows-x86_64-20131030\sdk\tools;C:\Program Files\apache-ant-1.9.3\bin;

Setupphonegapwindows 09 02

Setupphonegapwindows 09 03

Click on OK to save the new System variables. Close Command Prompt windows and re-open it.

10. Now again run the command “phonegap run android”. If an Android device is connected or if an AVD emulator exists, it will build and deploy the phonegap application.

Setupphonegapwindows 10 01
